SwiftUI scroll position targeting buggy with viewAligned scrollTargetBehavior

I think they're a few ways to go here:

Depending on where your scroll anchor is you'll need to account for that. For example, if it's in the center you'll need to account for extra spacing at the top and the bottom of your scrollview.

One way to solve this is Implement a custom ScrollTargetBehavior to customize where the scroll gestures should end using its deceleration rate account for extra spacing at the top and bottom.

Another close alternative might be to use a drag gesture with a custom view. Either approach should get you close .

For example:

import SwiftUI

struct StepCount: Equatable, Hashable, ExpressibleByIntegerLiteral {
    let value: Int

    init(_ value: Int) {
        self.value = max(1, value)
    }

    init(integerLiteral value: Int) {
        self.value = max(1, value)
    }
}

struct ScrubberRange: Equatable, Hashable {
    let minimum: Double
    let maximum: Double
    let stepSize: Double

    init(minimum: Double = 0, maximum: Double, stepSize: Double = 1) {
        self.minimum = minimum
        self.maximum = max(minimum, maximum)
        self.stepSize = max(0.1, stepSize)
    }

    var totalSteps: Int {
        Int((maximum - minimum) / stepSize)
    }

    func value(from normalizedValue: Double) -> Double {
        minimum + (normalizedValue * (maximum - minimum))
    }

    func normalizedValue(from value: Double) -> Double {
        guard maximum > minimum else { return 0 }
        return max(0, min(1, (value - minimum) / (maximum - minimum)))
    }
}

struct ScrubberConfig: Equatable, Hashable {
    let range: ScrubberRange
    let majorTickCount: Int
    let minorStepsPerMajor: StepCount
    let spacing: CGFloat
    let showLabels: Bool
    let labelFormatter: NumberFormatter?

    init(
        range: ScrubberRange,
        majorTickCount: Int = 10,
        minorStepsPerMajor: StepCount = 5,
        spacing: CGFloat = 8,
        showLabels: Bool = true,
        labelFormatter: NumberFormatter? = nil
    ) {
        self.range = range
        self.majorTickCount = max(1, majorTickCount)
        self.minorStepsPerMajor = minorStepsPerMajor
        self.spacing = max(1, spacing)
        self.showLabels = showLabels
        self.labelFormatter = labelFormatter ?? {
            let formatter = NumberFormatter()
            formatter.numberStyle = .decimal
            formatter.maximumFractionDigits = 0
            return formatter
        }()
    }

    var totalTickCount: Int {
        majorTickCount * minorStepsPerMajor.value + 1
    }

    func value(for tickIndex: Int) -> Double {
        let normalizedIndex = Double(tickIndex) / Double(totalTickCount - 1)
        return range.value(from: normalizedIndex)
    }

    func isMajorTick(_ index: Int) -> Bool {
        index % minorStepsPerMajor.value == 0
    }

    func label(for tickIndex: Int) -> String? {
        guard isMajorTick(tickIndex) && showLabels else { return nil }
        let value = self.value(for: tickIndex)
        return labelFormatter?.string(from: NSNumber(value: value))
    }
}

struct ScrubberState: Equatable {
    private var _currentValue: Double
    private let config: ScrubberConfig

    init(initialValue: Double = 0, config: ScrubberConfig) {
        self.config = config
        self._currentValue = Self.clampValue(initialValue, to: config.range)
    }

    var currentValue: Double {
        get { _currentValue }
        set { _currentValue = Self.clampValue(newValue, to: config.range) }
    }

    var normalizedValue: Double {
        config.range.normalizedValue(from: currentValue)
    }

    var currentTickIndex: Int {
        Int(normalizedValue * Double(config.totalTickCount - 1))
    }

    var isAtMinimum: Bool {
        abs(currentValue - config.range.minimum) < 0.001
    }

    var isAtMaximum: Bool {
        abs(currentValue - config.range.maximum) < 0.001
    }

    mutating func moveToNextMajorTick() {
        let currentIndex = currentTickIndex
        let nextMajorIndex = ((currentIndex / config.minorStepsPerMajor.value) + 1) * config.minorStepsPerMajor.value
        if nextMajorIndex < config.totalTickCount {
            currentValue = config.value(for: nextMajorIndex)
        }
    }

    mutating func moveToPreviousMajorTick() {
        let currentIndex = currentTickIndex
        let previousMajorIndex = max(0, ((currentIndex / config.minorStepsPerMajor.value) - 1) * config.minorStepsPerMajor.value)
        currentValue = config.value(for: previousMajorIndex)
    }

    mutating func step(by amount: Double) {
        currentValue += amount
    }

    private static func clampValue(_ value: Double, to range: ScrubberRange) -> Double {
        max(range.minimum, min(range.maximum, value))
    }
}

@Observable
class ScrubberData {
    var state: ScrubberState
    let config: ScrubberConfig
    var scrollPosition: TickInfo.ID? {
        didSet {
            guard let pos =  scrollPosition else { return }
            let newValue = config.value(for: pos)
            if abs(currentValue - newValue) > 0.001 {
                currentValue = newValue
            }
        }
    }

    init(config: ScrubberConfig, initialValue: Double = 0) {
        self.config = config
        self.state = ScrubberState(initialValue: initialValue, config: config)
    }

    var currentValue: Double {
        get { state.currentValue }
        set { state.currentValue = newValue }
    }

    var formattedCurrentValue: String {
        config.labelFormatter?.string(from: NSNumber(value: currentValue)) ?? "\(currentValue)"
    }

    func tickInfo(for index: Int) -> TickInfo? {
        guard index >= 0 && index < config.totalTickCount else { return nil }

        return TickInfo(
            index: index,
            value: config.value(for: index),
            isMajor: config.isMajorTick(index),
            label: config.label(for: index)
        )
    }

    var allTicks: [TickInfo] {
        (0..<config.totalTickCount)
            .compactMap { tickInfo(for: $0) }
    }
}

struct TickInfo: Identifiable, Equatable {
    let id: Int
    let index: Int
    let value: Double
    let isMajor: Bool
    let label: String?

    init(index: Int, value: Double, isMajor: Bool, label: String?) {
        self.id = index
        self.index = index
        self.value = value
        self.isMajor = isMajor
        self.label = label
    }
}

extension ScrubberData {
    static func percentage(initialValue: Double = 0) -> ScrubberData {
        let range = ScrubberRange(minimum: 0, maximum: 100, stepSize: 5)
        let config = ScrubberConfig(
            range: range,
            majorTickCount: 20,
            minorStepsPerMajor: 5
        )
        return ScrubberData(config: config, initialValue: initialValue)
    }

    static func range(
        from minimum: Double,
        to maximum: Double,
        stepSize: Double = 1,
        majorTicks: Int = 10,
        minorSteps: Int = 5,
        initialValue: Double? = nil
    ) -> ScrubberData {
        let range = ScrubberRange(minimum: minimum, maximum: maximum, stepSize: stepSize)
        let config = ScrubberConfig(
            range: range,
            majorTickCount: majorTicks,
            minorStepsPerMajor: StepCount(minorSteps)
        )
        return ScrubberData(config: config, initialValue: initialValue ?? minimum)
    }
}

import SwiftUI

struct ContentView: View {
    @State private var scrubberData = ScrubberData.percentage(initialValue: 50)

    var body: some View {
        VStack {

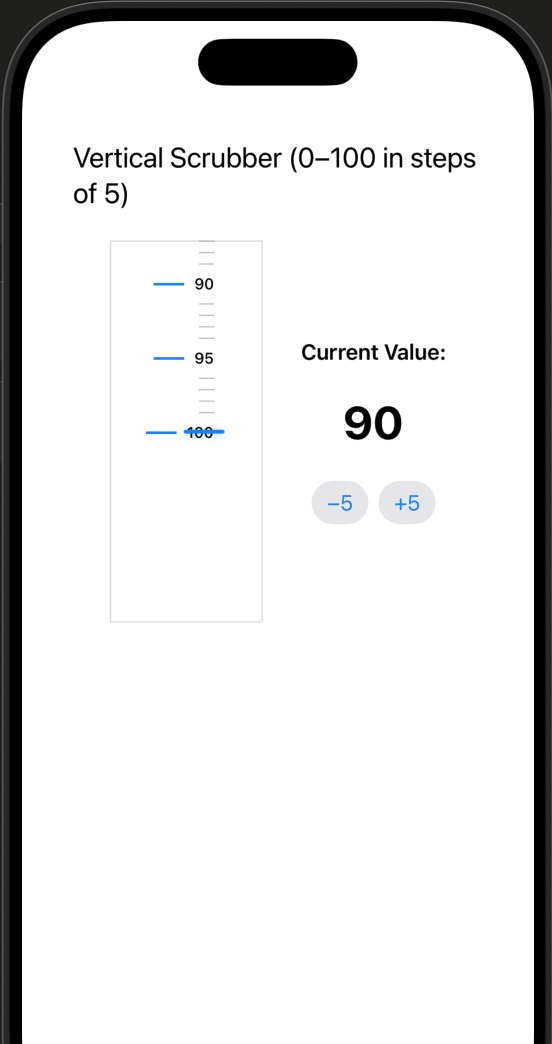

            Text("Vertical Scrubber (0–100 in steps of 5)")
                .font(.title2)
                .padding()

            HStack(spacing: 30) {
                VerticalScrubber(scrubberData: scrubberData)
                    .frame(width: 120, height: 300)
                    .background(Color(.systemBackground))
                    .border(Color.gray.opacity(0.3))

                VStack {
                    Text("Current Value:")
                        .font(.headline)
                    Text(scrubberData.formattedCurrentValue)
                        .font(.system(size: 36, weight: .bold))
                        .padding()

                    HStack {
                        Button("−5") {
                            scrubberData.state.step(by: -5)
                        }
                        .disabled(scrubberData.state.isAtMinimum)

                        Button("+5") {
                            scrubberData.state.step(by: 5)
                        }
                        .disabled(scrubberData.state.isAtMaximum)
                    }
                    .buttonStyle(.bordered)
                }
            }

            Spacer()
        }
        .padding()
    }
}

struct ScrubberScrollBehavior: ScrollTargetBehavior {
    func updateTarget(_ target: inout ScrollTarget, context: TargetContext) {
        let tickSpacing: CGFloat = 8.0 + 2.0
        let paddingOffset: CGFloat = 130

        let scrollOffset = target.rect.minY + paddingOffset
        let tickIndex = round(scrollOffset / tickSpacing)
        let clampedIndex = max(0, tickIndex)

        let targetPosition = (clampedIndex * tickSpacing) - paddingOffset

        target.rect.origin.y = targetPosition
    }
}

struct VerticalScrubber: View {
    @Bindable var scrubberData: ScrubberData

    var body: some View {
        ScrollView(.vertical, showsIndicators: false) {
            VStack(spacing: scrubberData.config.spacing) {
                Spacer(minLength: 130)
                ForEach(scrubberData.allTicks) { tick in
                    tickMarkView(for: tick)
                }
                Spacer(minLength: 130)
            }
            .scrollTargetLayout()
        }
        .scrollTargetBehavior(ScrubberScrollBehavior())
        .defaultScrollAnchor(.center)
        .scrollPosition(id: $scrubberData.scrollPosition, anchor: .center)
        .frame(width: 100)
        .task {
            scrubberData.scrollPosition = scrubberData.state.currentTickIndex
        }
        .onChange(of: scrubberData.state.currentTickIndex) { _, newIndex in
            if scrubberData.scrollPosition != newIndex {
                withAnimation(.easeInOut) {
                    scrubberData.scrollPosition = newIndex
                }
            }
        }
    }

    private func tickMarkView(for tick: TickInfo) -> some View {
        let isSelected = tick.index == scrubberData.state.currentTickIndex

        return HStack(spacing: 8) {
            Rectangle()
                .fill(tickColor(for: tick, isSelected: isSelected))
                .frame(
                    width: tickWidth(for: tick, isSelected: isSelected),
                    height: tickHeight(for: tick, isSelected: isSelected)
                )
                .shadow(
                    color: isSelected ? Color.accentColor.opacity(0.4) : Color.clear,
                    radius: isSelected ? 4 : 0,
                    x: 0,
                    y: 0
                )
                .animation(.easeInOut(duration: 0.2), value: isSelected)

            if let label = tick.label {
                Text(label)
                    .font(.system(
                        size: isSelected ? 14 : 12,
                        weight: isSelected ? .bold : .medium
                    ))
                    .foregroundColor(isSelected ? .accentColor : .primary)
                    .fixedSize()
                    .animation(.easeInOut(duration: 0.2), value: isSelected)
            }
        }
        .frame(maxWidth: .infinity, alignment: .trailing)
        .padding(.trailing, 8)
        .background(
            RoundedRectangle(cornerRadius: 4)
                .fill(isSelected ? Color.accentColor.opacity(0.1) : Color.clear)
                .animation(.easeInOut(duration: 0.2), value: isSelected)
        )
    }

    private func tickColor(for tick: TickInfo, isSelected: Bool) -> Color {
        if isSelected {
            return .accentColor
        } else if tick.isMajor {
            return .accentColor.opacity(0.7)
        } else {
            return .gray.opacity(0.5)
        }
    }

    private func tickWidth(for tick: TickInfo, isSelected: Bool) -> CGFloat {
        if isSelected {
            return tick.isMajor ? 32 : 20
        } else {
            return tick.isMajor ? 24 : 12
        }
    }

    private func tickHeight(for tick: TickInfo, isSelected: Bool) -> CGFloat {
        if isSelected {
            return tick.isMajor ? 3 : 2
        } else {
            return tick.isMajor ? 2 : 1
        }
    }
}
